HSD Series
Maximum process safety
HSD 1104-52
HSD 1106-52
HSD 1704-52
HSD Series Drying Cabinets
Drying starts less than 2% RH
Feeder systems

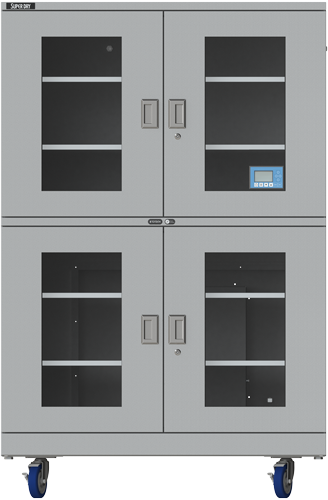

HSD 1104-52
| External Dimensions (WxHxD) | 1200 x 1675 x 768 mm |
| Internal Dimensions (WxHxD) | 1190 x 1533 x 630 mm |
| Weight | 189 kg |
| Weight on shelf | 50 kg |
| Max loading capacity | 300 kg |
| Body | Steel, dissipative coated (10^5 – 10^11 Ω/sq) |
| Shelve dimensions (WxD) | 5 pcs, 1150 x 490 mm Chrome steel, in a grid of 50 mm height adjustable |
| Effective capacity | 1179 L |
| Electric supply | 230 V / 50 Hz (120 V / 60 Hz optionally available) |
| Power Consumption | 230 V / 50 Hz (120 V / 60 Hz (optionally available) |
| Protection Class | Class 1, hard grounded |
Climate control:
Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C
Cabinet performance:
<15 min. recovery time after door opening to <0.5% rh
Drying unit
U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic
Cabinet temperature:
Optional heating up to 40 ºC
Cabinet control
Limit value settings through display or web interface. Door and humidity alarm function
Smart Connect
HSD Series Drying cabinets are ready to be integrated within a network

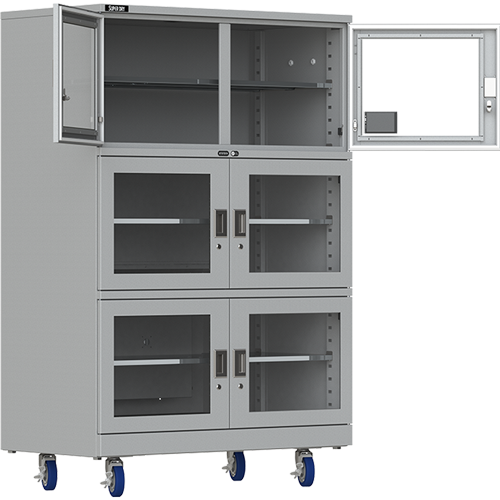

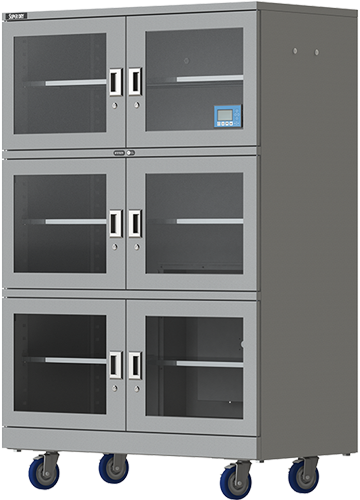

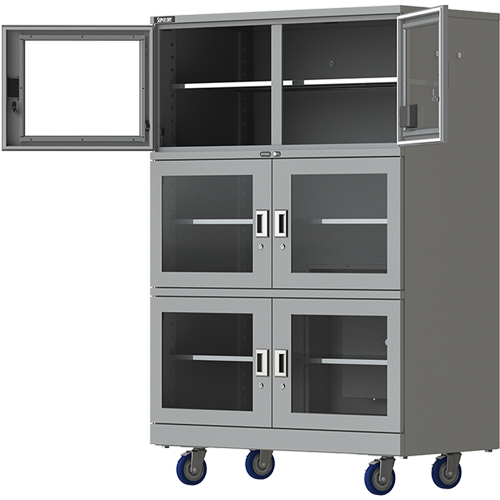

HSD 1106-52
| External Dimensions (WxHxD) | 1200 x 1675 x 768 mm |
| Internal Dimensions (WxHxD) | 1190 x 1533 x 630 mm |
| Weight | 189 kg |
| Weight on shelf | 50 kg |
| Max loading capacity | 300 kg |
| Body | Steel, dissipative coated (10^5 – 10^11 Ω/sq) |
| Shelve dimensions (WxD) | 5 pcs, 1150 x 490 mm Chrome steel, in a grid of 50 mm height adjustable |
| Effective capacity | 1179 L |
| Electric supply | 230 V / 50 Hz (120 V / 60 Hz optionally available) |
| Power Consumption | 230 V / 50 Hz (120 V / 60 Hz (optionally available) |
| Protection Class | Class 1, hard grounded |
Climate control:
Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C
Cabinet performance:
<15 min. recovery time after door opening to <0.5% rh
Drying unit
U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic
Cabinet temperature:
Optional heating up to 40 ºC
Cabinet control
Limit value settings through display or web interface. Door and humidity alarm function
Smart Connect
HSD Series Drying cabinets are ready to be integrated within a network

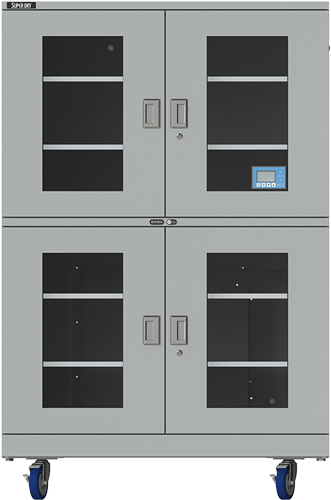

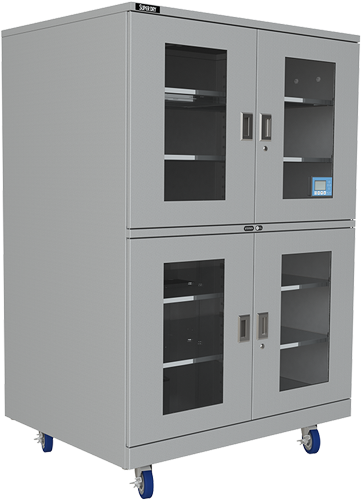

HSD 1704-52
| External Dimensions (WxHxD) | 1200 x 1675 x 960 mm |
| Internal Dimensions (WxHxD) | 1190 x 1533 x 910 mm |
| Weight | 179 kg |
| Weight on shelf | 50 kg |
| Max loading capacity | 300 kg |
| Body | Steel, dissipative coated (10^6 – 10^8 Ω/sq) |
| Shelve dimensions (WxD) | 5 pcs, 1150 x 780 mm Chrome steel, in a grid of 50 mm height adjustable |
| Effective capacity | 1700 L |
| Electric supply | 230 V / 50 Hz (120 V / 60 Hz optionally available) |
| Power Consumption | Average 46 W/h |
| ProtectionClass | Class 1, hard grounded |
Climate control:
Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C
Cabinet performance:
<15 min. recovery time after door opening to <0.5% rh
Drying unit
U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic
Cabinet temperature:
Optional heating up to 40 ºC
Cabinet control
Limit value settings through display or web interface. Door and humidity alarm function
Smart Connect
HSD Series Drying cabinets are ready to be integrated within a network
