MSD Series
Modular design
MSD 1222 Basic
MSD 1223 Add On
MSD Drying Cabinets
Drying starts less than 2% RH
The cabinet that grows with your demand

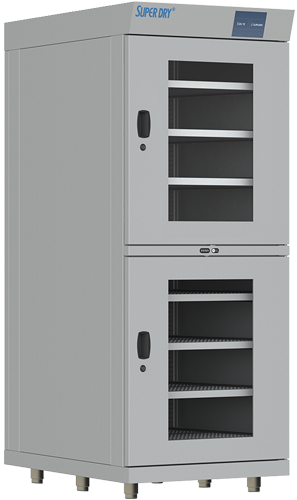

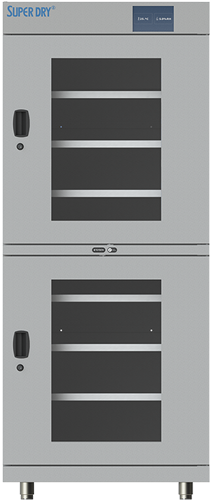

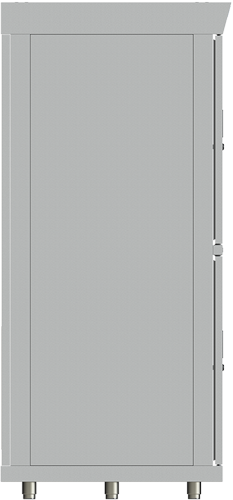

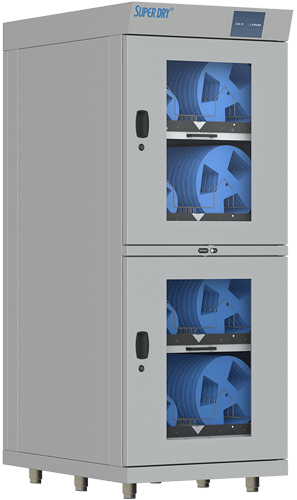

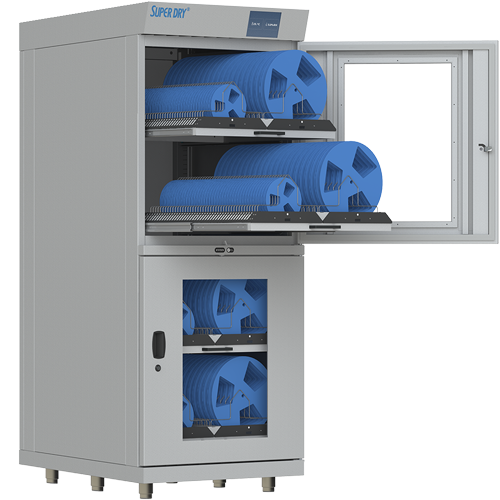

MSD 1222-55 Basic
| External Dimensions (WxHxD) | 840 x 2040 x 900 mm |
| Internal Dimensions (WxHxD) | 830 x 1780 x 850 mm |
| Weight | 140 kg |
| Weight on shelf | 30 kg |
| Max loading capacity | 400 kg |
| Body | Steel, dissipative coated (10^5 – 10^11 Ω/sq) |
| Shelve dimensions (WxD) | 2 pcs short, 735 x 580 mm 2 pcs long, 735 x 740 mm. dissipative coated, in a grid of 20 mm height adjustable. |
| Effective capacity | 1200 L |
| Electric supply | 230 V / 50 Hz (120 V / 60 Hz optionally available) |
| Power Consumption | 30 W/h average |
| Protection Class | Class 1, hard grounded |
Climate control:
Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C
Cabinet performance:
15 min. recovery time after door opening to <1% rh
Drying unit
U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic
Cabinet temperature:
Heating up to 40 ºC
Cabinet control
Limit value settings through display or web interface. Door and humidity alarm function
Smart Connect
MSD Series cabinets are ready to be integrated within a network

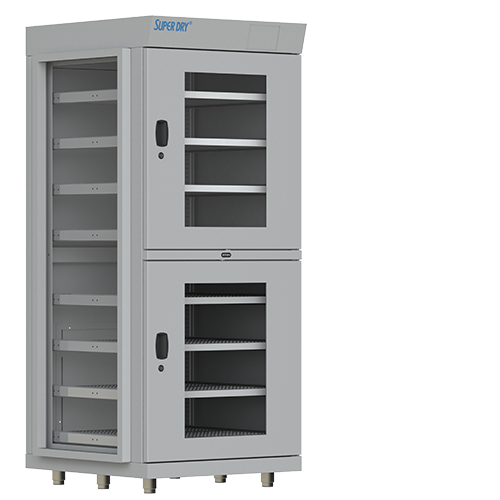

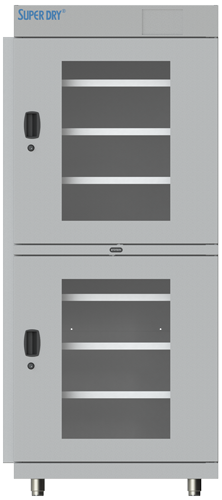

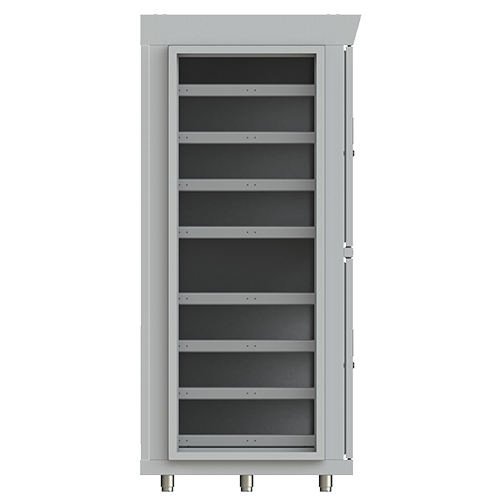

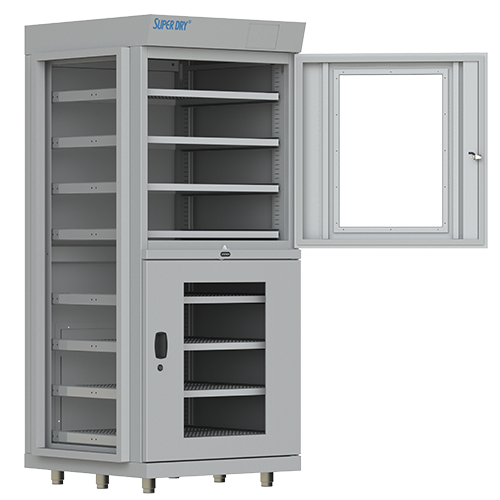

MSD 1223 Add-On
| External Dimensions (WxHxD) | 840 x 2040 x 900 mm |
| Internal Dimensions (WxHxD) | 830 x 1780 x 850 mm |
| Weight | 125 kg |
| Weight on shelf | 30 kg |
| Max loading capacity | 400 kg |
| Body | Steel, dissipative coated (10^5 – 10^11 Ω/sq) |
| Shelve dimensions (WxD) | 4 pcs long, 735 x 740 mm. dissipative coated, in a grid of 20 mm height adjustable |
| Effective capacity | 1255 L |
| Protection Class | Class 1, hard grounded |
Climate control:
Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C
Cabinet performance:
15 min. recovery time after door opening to <1% rh
Drying unit
U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic
Cabinet temperature:
Heating up to 40 ºC
Cabinet control
Limit value settings through display or web interface. Door and humidity alarm function
Smart Connect
MSD Series cabinets are ready to be integrated within a network
