XSD Series

Perfection to the last detail

Get a custom quote
XSD-Series-1

XSD 701-55

XSD 1412-55

Fast Drying Cabinets

Fast drying less than 1% RH + Heat (40 ºC – 60 ºC)

XSD Series high-end desiccant dry cabinets are designed to exceed the formidable challenges associated with IPC/JEDED J-STD-033 and 1601 for handling Moisture Sensitive Devices. The advanced technology of XSD desiccant cabinets delivers a process combining ultra low humidity (less than 0.5% RH) and mild temperatures (40-60 °C) for floor life reset. This has been proven to replace traditional oven baking of components and boards at a fraction of the cost and risks. With a standard insulation of 60mm and a very airtight housing, this model is able to offer a very precise heating and drying profile, especially for accurate drying and resetting.

Fast floor life reset of your components!

The XSD(B) series Fast Drying Cabinets deliver outstanding performance for floor life reset of components and drying of Reels, PCBs, as well as 3D filament and moisture absorbent materials of all kinds. Due to extremely fast recovery times of our XSD series, opening the doors is no problem, even during drying processes. The XSD cabinet with its powerful U-5000 series drying unit will make sure the average humidity is less than 1% RH during the day.
Download Flyer

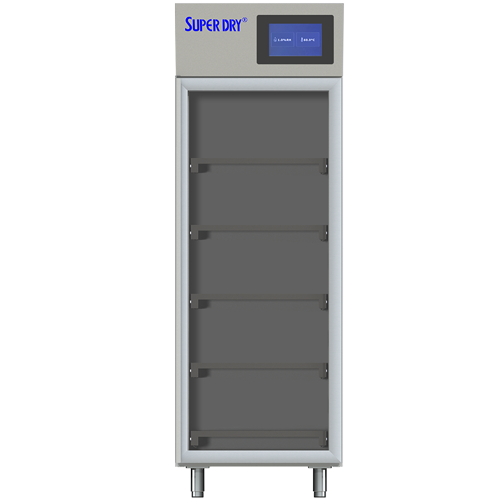

XSD 701-55

Technical data cabinet
External Dimensions (WxHxD) 700 x 2110 x 808 mm
Internal Dimensions (WxHxD) 544 x 1504 x 600 mm
Weight 142 kg

Weight on shelf

50 kg
Max loading capacity 300 kg
Body Stainless steel, conductive (less than 10^3 Ω/sq)
Shelve dimensions (WxD)

5 pcs, 535 x 550 mm adjustable (max. 15 pcs) Chrome Steel in grid of 50 mm height adjustable
Effective capacity 490 L
Electric supply 230 V / 50 Hz (120 V / 60 Hz optionally available)
Power Consumption 230 W/h average (40 ºC)
Protection Class Class 1, hard grounded
clim-control

Climate control:

Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C

cab-perf

Cabinet performance:

6 min. recovery time after door opening to <0.5% rh

dry-unit

Drying unit

U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic

cab-temperature

Cabinet temperature:

Heating up to 60 ºC

cab-control

Cabinet control

Limit value settings through display or web interface. Door and humidity alarm function

connect

Smart Connect

XSD Series Fast Drying and Reset Cabinets are ready to be integrated within a network

Download datasheet
Request quotation

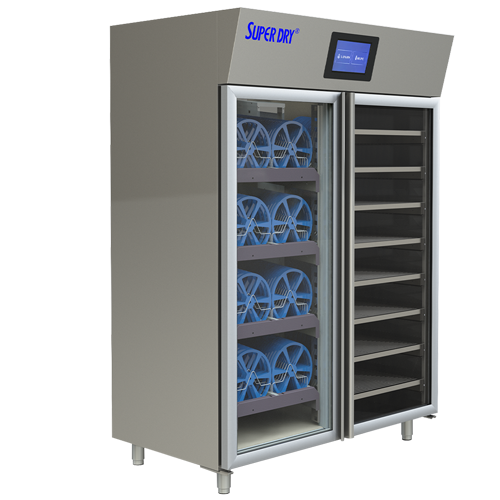

XSD 1412-55

Technical data cabinet
External Dimensions (WxHxD) 1432 x 2110 x 808 mm
Internal Dimensions (WxHxD) 1311 x 1504 x 685 mm
Weight 230 kg

Weight on shelf

50 kg
Max loading capacity 300 kg
Body Stainless steel, conductive (less than 10^3 Ω/sq)
Shelve dimensions (WxD)

10 pcs, 535 x 650 mm adjustable (max. 30 pcs) Chrome Steel in grid of 50 mm height adjustable
Effective capacity 1390 L
Electric supply 230 V / 50 Hz (120 V / 60 Hz optionally available)
Power Consumption 230 W/h average (40 ºC)
Protection Class Class 1, hard grounded
clim-control

Climate control:

Rotronic sensor with accuracy +/- 0.8% RH and +/- 0.2 °C

cab-perf

Cabinet performance:

6 min. recovery time after door opening to <0.5% rh

dry-unit

Drying unit

U-5000 drying unit: Air drying to <0.5% rh regeneration: dynamic

cab-temperature

Cabinet temperature:

Heating up to 60 ºC

cab-control

Cabinet control

Limit value settings through display or web interface. Door and humidity alarm function

connect

Smart Connect

XSD Series Fast Drying and Reset Cabinets are ready to be integrated within a network

Download datasheet
Request quotation
